Replacement NST Lead Set

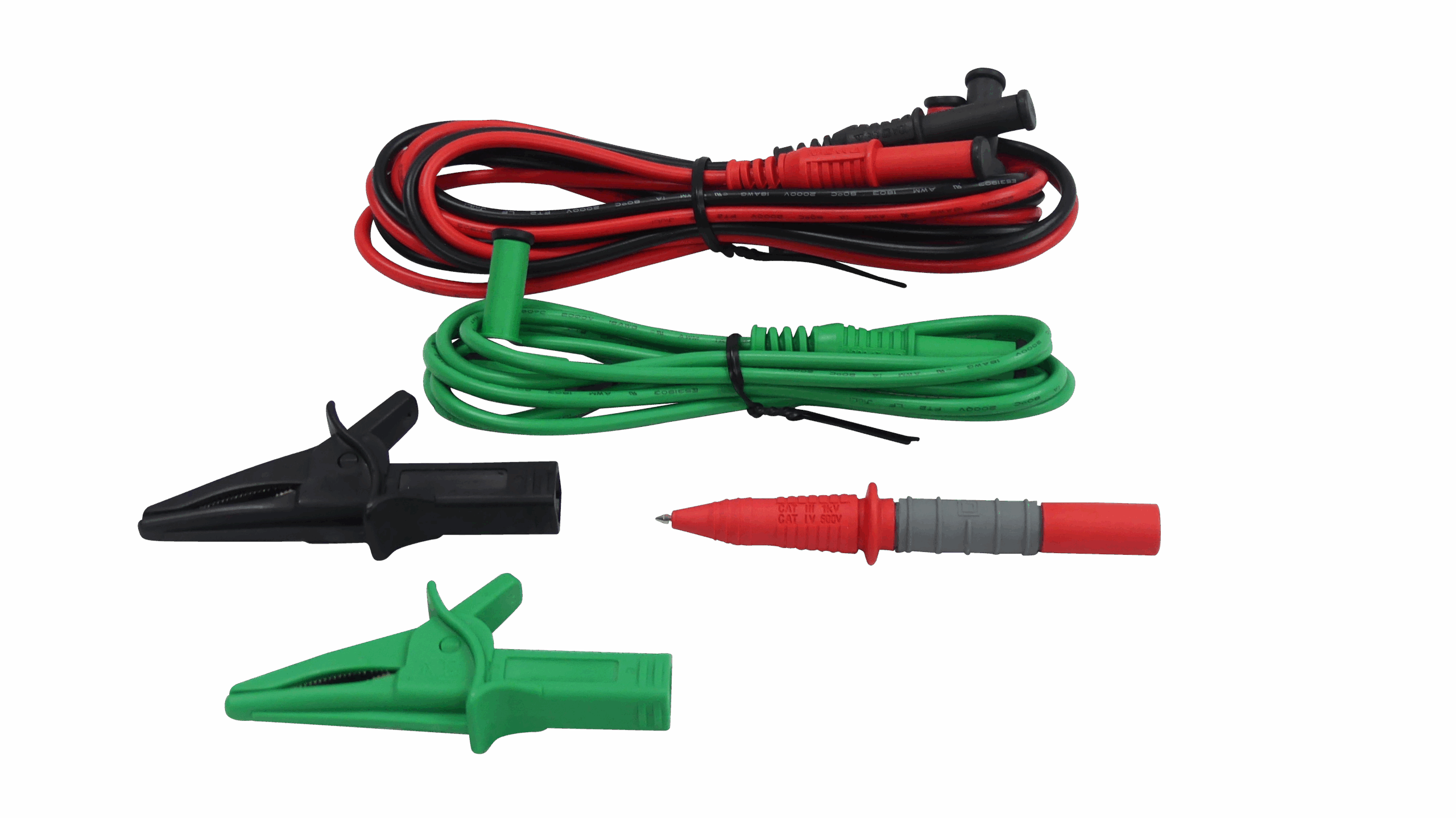

The EFO Replacement NST lead set is designed for metering installers using the Dewar NST. It contains CAT IV Test leads rated to Cat IV 600V 10A. Red Probe and Black and Green Crocodile Clips. Test leads for meters and testers are highly susceptible to poor contact and damage. Our patented screw end offsets the bending oppression, which makes it highly durable and long lasting. Fits most Test Equipment with 4mm Sockets.

Specification

Wire : PVC UL 1803 / 18AWG.
length : 1100±30mm
Out diameter : 3.50mm
Temperature tolerance range : -40ºC~105ºC
Braid copper wires : 64 / 0.12mm
Terminal :
Right angle 4mm brass (nickel plated) banana plug with
caged and insulated sheathing to avoid the brass oxidation.

Rating :
EN 61010-031:2002+A1:2008
CAT IV 600V 10A / CAT III 1000V 10A

Rating Probes :
EN 61010-031:2002 + A1:2008
CAT IV 600V 15A / CAT III 1000V 15A

Rating Croc Clips :
Rating : EN 61010-031:2002 + A1:2008
CAT III 600V 10A
