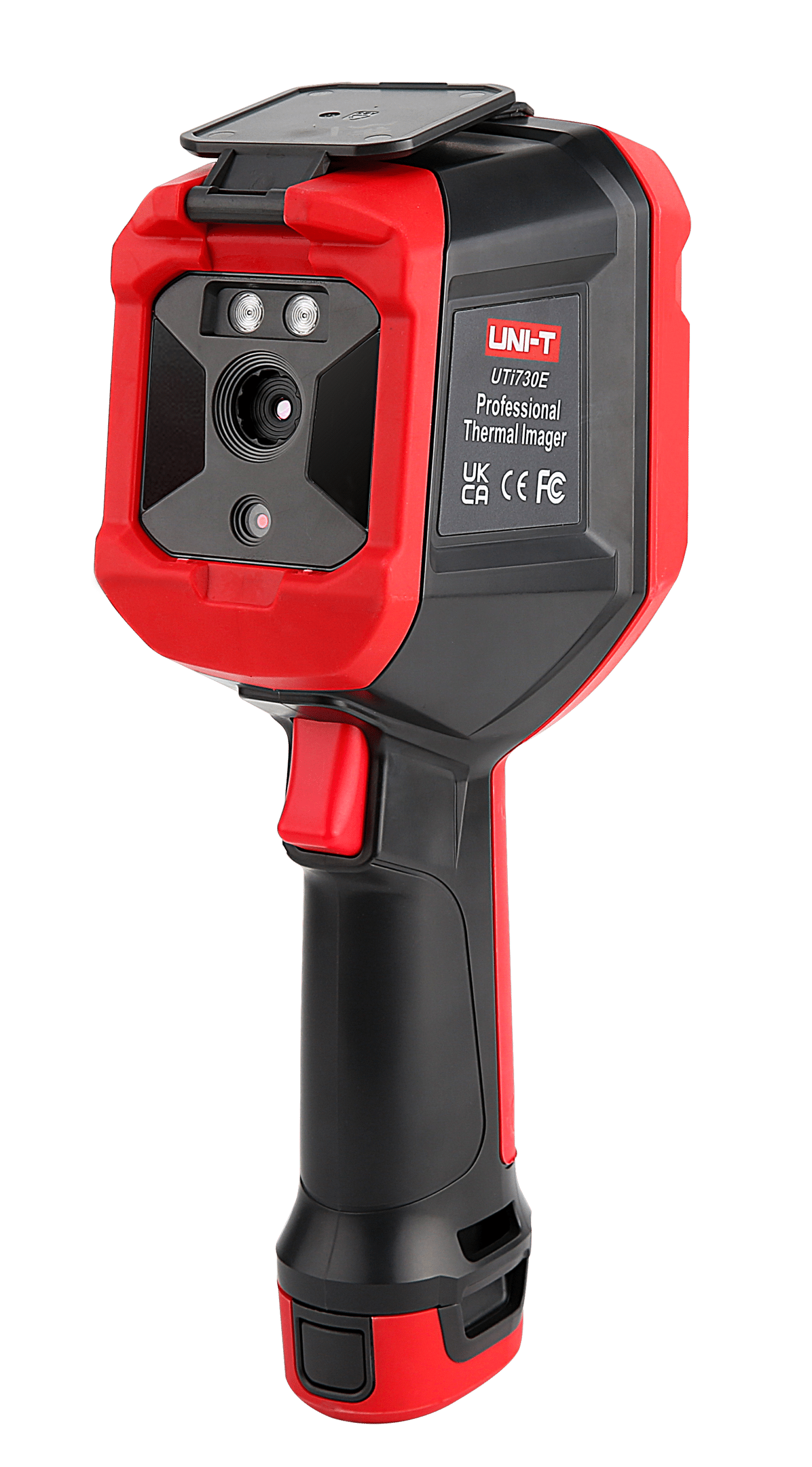

Enhanced Thermal Imager 640×480
The TC730E is an advanced thermal imager with Wi-Fi capability. Its large 3.5” IPS screen can clearly display 320×240 thermal resolution, 2MP visual camera, or a blended image of both. TC730E detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time. Applications in HVAC, electrical utility’s, EV mechanical inspection and automotive maintenance.
Features
IR resolution 320×240 piexls
General Characteristics
Display 3.5” IPS (640×480 pixels)
Field of view (FOV) 56° (H) x 42° (V)
Thermal sensitivity (NETD) 65mK
Spatial resolution (IFOV) 3mrad
Frame rate 25Hz
Temperature measurement range -20°C ~ 550°C (-4°F ~ 1022°F)
Accuracy ±2°C or ±2% whichever is greater
Battery operating time Continuous operating time ≥4h
Battery Li-ion battery (3.7V 5200mAh
Function
Palettes 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Digital zoom 2x, 4x
Image modes Thermal, Visual Image, Fusion, PIP
Isotherm 6 (Auto, Ratio, Below, Above, Section, Manual)
LED flashlight Dual LED flashlight
Wi-Fi download photos with mobile APP √
Auto tracking for Lo/Hi temperature √
Alarm √ (Icon/Flashlight)
Storage 16GB Micro SD Card
On screen temperature analysis tools Point 5/Line 1/Area 6
Emissivity 0.95 default (0.01~1.00 adjustable)
Software Analysis, Real-time display
Protection IP54/2m
Certificates CE, UKCA, FCC, RoHS
USB Type-C
